STW25NM60N
%5
561,17 TL (Kdv Dahil)
590,70 TL
%3,00
Havale İndirimli Fiyatı : 544,33 TL
Stok Kodu
:
674380
TW25NM60N TO-247 21A 600V 160W 0.16Ω N-CHANNEL MOSFET
STW25NM60N MOSFET
Type Designator: STW25NM60N
Marking Code: W25NM60N
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 160 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 25 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 21 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 84 nC
Rise Time (tr): 18 nS
Drain-Source Capacitance (Cd): 200 pF
Maximum Drain-Source On-State Resistance (Rds): 0.16 Ohm

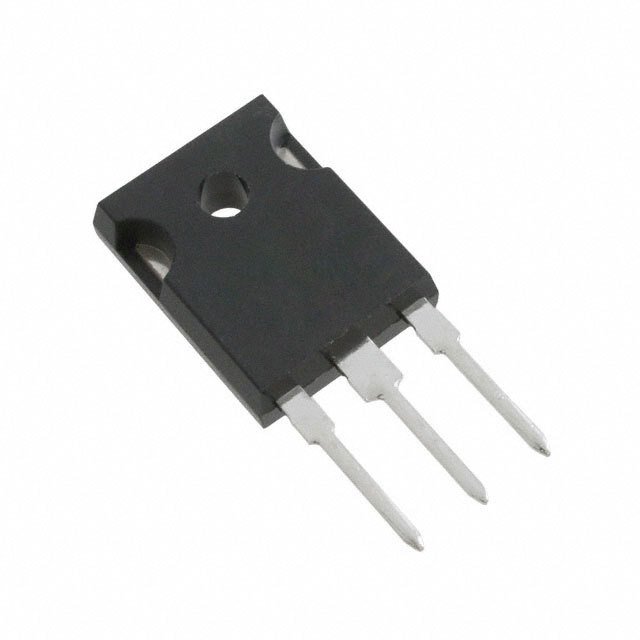

Package: TO-247
