2N3906
%5
1,75 TL (Kdv Dahil)
1,84 TL
%3,00
Havale İndirimli Fiyatı : 1,70 TL
0,33 TL den başlayan taksitlerle!!
Stok Kodu
:
674612

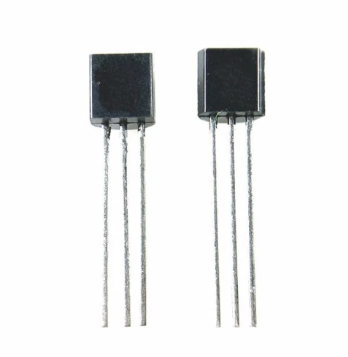

2N3906 TO-92 200MA 40V PNP BJT TRANSISTOR
2N3906
Type Designator: 2N3906
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.31 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 40 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.2 A
Max. Operating Junction Temperature (Tj): 135 °C
Transition Frequency (ft): 250 MHz
Collector Capacitance (Cc): 5 pF
Forward Current Transfer Ratio (hFE), MIN: 100
Package: TO92
