2SC3280
130,79 TL (Kdv Dahil)
13,42 TL den başlayan taksitlerle!!
Stok Kodu
:
9G8KBGVPDR

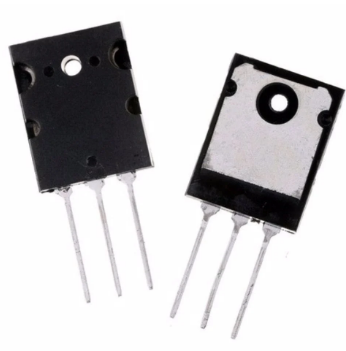

2SC3280 TO-3PL 160V 12A 120W NPN TRANSISTOR
2SC3280
Type Designator: 2SC3280
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 120 W
Maximum Collector-Base Voltage |Vcb|: 160 V
Maximum Collector-Emitter Voltage |Vce|: 160 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 12 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 30 MHz
Collector Capacitance (Cc): 220 pF
Forward Current Transfer Ratio (hFE), MIN: 55
Package: X104
