STD8N80K5
%5
82,85 TL (Kdv Dahil)
87,21 TL
%3,00
Havale İndirimli Fiyatı : 80,36 TL
15,70 TL den başlayan taksitlerle!!
Stok Kodu
:
674247

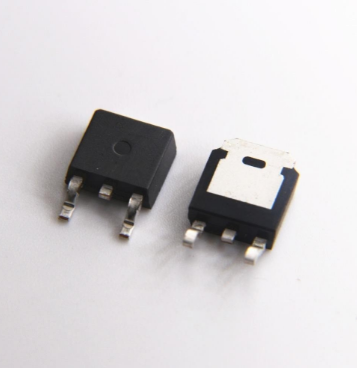

STD8N80K5 TO-252 6A 800V 110W 0.95Ω N-CHANNEL MOSFET
STD8N80K5 MOSFET
Type Designator: STD8N80K5
Marking Code: 8N80K5
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 110 W
Maximum Drain-Source Voltage |Vds|: 800 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 6 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 16.5 nC
Rise Time (tr): 14 nS
Drain-Source Capacitance (Cd): 50 pF
Maximum Drain-Source On-State Resistance (Rds): 0.95 Ohm
Package: DPAK
