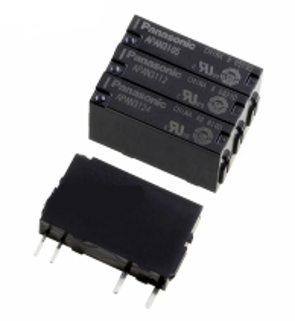

APAN3105 5V 5A Panasonic Röle
100,98 TL (Kdv Dahil)
19,13 TL den başlayan taksitlerle!!
Stok Kodu
:
UD79M2WT9Q
| Ürün Özellikleri: | Tümünü Seç : | |
|---|---|---|
| Height | 12.50mm | |
| Series | APAN | |
| Coil Voltage | 5VDC | |
| Coil Resistance | 227 Ohms | |
| Coil Power | 110mW | |
| Manufacturer | PANASONIC COMP. | |
| Contact Form | SPST-NO (1 Form A) | |
| Contact Voltage | 250VAC/30VDC | |
| Number of Pins | 4 Pin | |
| Length | 20.00mm | |
| Width | 5.00mm | |
| Rohs | ROHS | |
| Relay Type | Relay Power Slim | |
| Mounting Type | THT | |
| Coil Type | Non Latching | |
| Contact Current (Nom) | 5A | |
| Coil Current | 22mA | |
| Operating Temperature | -40°C~+90°C | |
| Packaging | TUBE |
