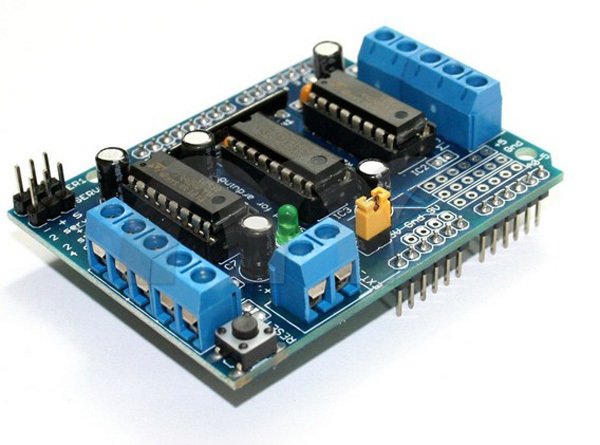

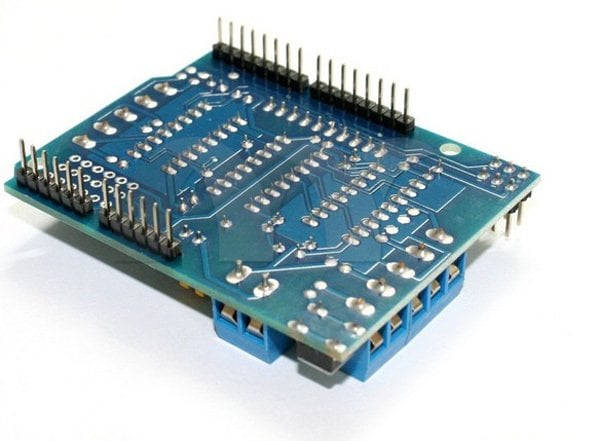

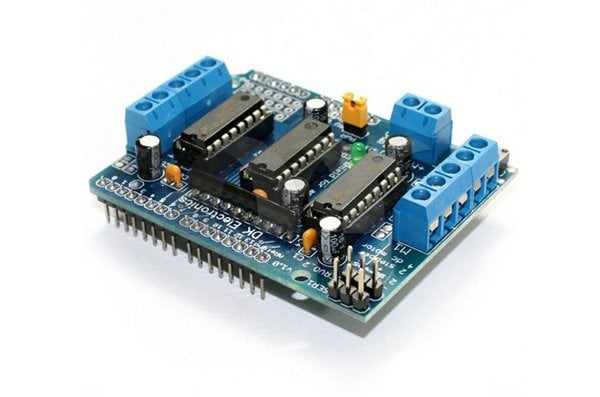

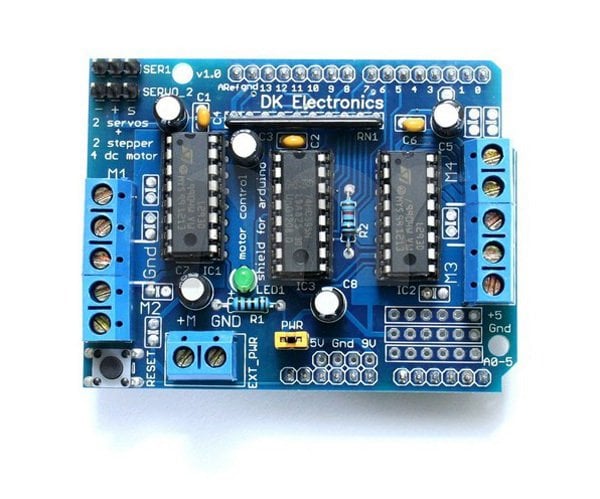

Arduino L293D Motor Drive Shield Expansion Board
185,22 TL (Kdv Dahil)
%3,00
Havale İndirimli Fiyatı : 179,66 TL
19,00 TL den başlayan taksitlerle!!
Stok Kodu
:
2151
Arduino L293D Motor Drive Shield Expansion Board
Özellikler:
2 interface for 5V Servo connected to the Arduino's high-resolution dedicated timer - no jitter
Can drive 4 DC motors or 2 stepper motors or 2 Servo
Up to 4 bi-directional DC motors with individual 8-bit speed selection
Up to 2 stepper motors (unipolar or bipolar) with single coil,
double coil or interleaved stepping
4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with
thermal protection, can run motors on 5V to 36V DC
Pull down resistors keep motors disabled during power-up
Compatible with Arduino Mega, Diecimila & Duemilanove
Ağırlık: 38 gr
