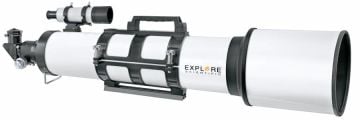

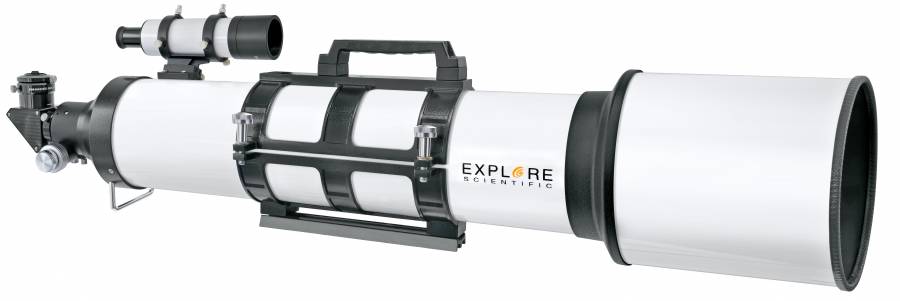

Explore Scientific AR152 f/6.5 Air-Spaced Doublet OTA
Universal Mounting Plate
The universal adjustable mounting plate of the AR 152 fits on many popular equatorial and altazimuth mounts, including mounts supplied by Explore Scientific, Vixen, and Meade LXD55/75. Instead of using a cast metal part, Explore Scientific's universal mounting plate is made from extruded aluminum for added strength, it is afterall what secures your telescope to the mount. We also include adjustment screws and locking bolts to allow adjustments to position the angle of the telescope when it is placed on its mount, an important feature when using an equatorial mount.

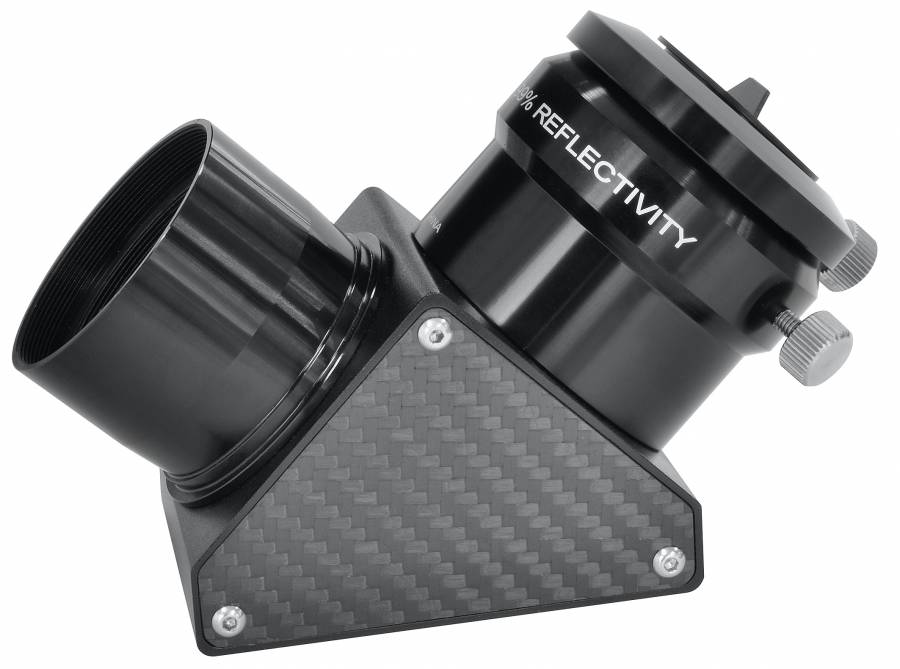

2-Inch 99% Reflective Dielectric-Coated Diagonal Mirror
The two inch 99% reflective mirror diagonal includes a 1.25" eyepiece holder adapter. The purpose of a diagonal is to securely hold your eyepiece and to give you a comfortable viewing angle. Provided as standard equipment, Explore Scientific's two-inch, 99% reflective, dielectric-coated diagonal incorporates a light-weight, one-piece diagonal body that securely cradles the precision polished diagonal flat mirror, insuring precision alignment.

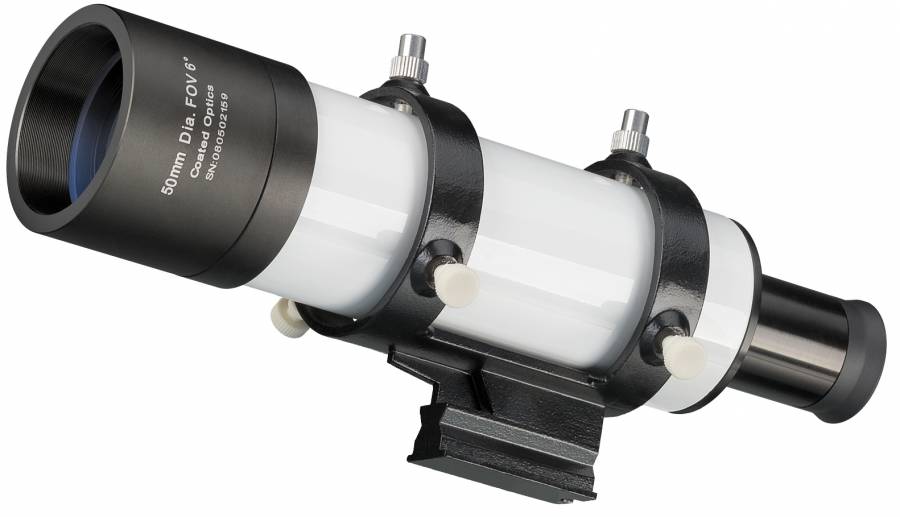

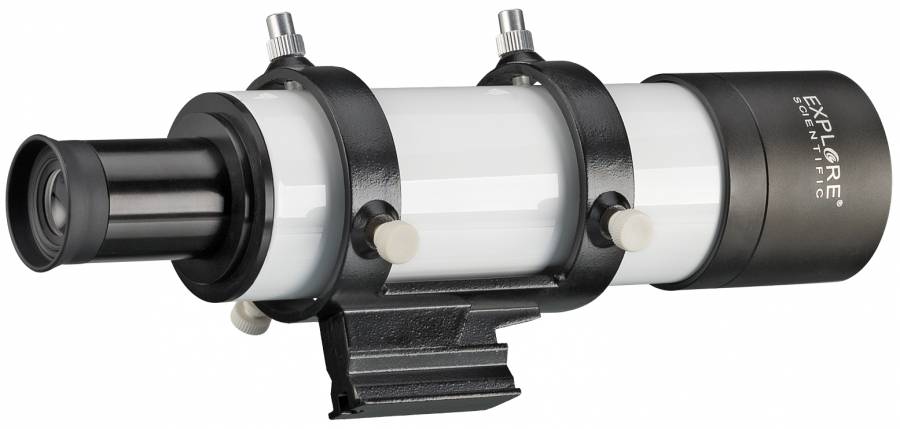

8x50 Finder Scope
The Explore Scientific 8x50 finder scope provides a true field of view of 6°. Its coated optics provide a bright high-resolution image so that many faint stars and nebulosity can be detected for precise aiming. The front objective can be custom focused to provide a sharp image every time.
Features:
- Optical design: air-spaced doublet achromatic refractor
- Clear aperture: 152mm
- Focal length: 988mm
- Focal ratio: f/6.5
- Resolving power: 0.77 arc seconds
- Coatings: fuly multi-coated
- Limiting stellar magnitude: 13.4
- Maximum practical visual power: 600x
- Lowest useful visual power: 21.7x
- Focuser: ten-to-one dual-speed Crayford-style, w/adjustable tension and lock
- Finder scope: 8x50 straight; adjustable objective focus; dual-ring, six-point, bracket w/quick release shoe
- Cradle/saddle plate: tri ring style with handle – fits Explore Scientific mounts; Vixen mounts; Meade LXD55/75 mounts
- Tube diameter: 6.21" – 157.7mm
- Tube length: 41" – 1041.4mm
- Tube construction: aluminum; stainless steel
The kit includes:
- Optical tube with removable dew-shield
- Front and rear dust covers
- Cradle rings with handle and univsersal saddle plate
- Two-speed focuser 2.0" I.D.
- 8x50 Finderscope with six point adjustable bracket
- 2.0" 99% reflective mirror diagonal with 1.25" adapter
| Marka | Explore Scientific |
| Garanti, yıl | 2 |
| EAN | 4007922002972 |
| Paket boyutu (UxGxY), cm | 104x15.8x15.8 |
| Nakliye Ağırlığı, kg | 10.7 |
| Optik tasarım | refraktör |
| Optik şema | akromat |
| Optik parça kaplaması | tamamen çoklu kaplanmış |
| Objektif merceği çapı (açıklık), mm | 152 |
| Odak uzaklığı, mm | 988 |
| En yüksek pratik güç, x | 300 |
| Açıklık oranı | f/6.5 |
| Çözünürlük eşiği, ark saniye | 0.86 |
| Sınır görünür parlaklık | 13.4 |
| Göz merceği borusu çapı, inç | 1,25/2 |
| Bulucu dürbün | optik, 8x50 |
| Odaklayıcı | 2", Crayford, 2 hızlı (1:10) |
| Optik tüp kundak modu | sabitleme halkaları |
| Kırlangıç kuyruğu kundağı | yes |
| Optik tüp malzemesi | alüminyum |
| Optik tüp boyutları, mm | 158x1042 |
| Kullanıcı seviyesi | deneyimli kullanıcılar, profesyoneller |
| Gözlemlenen nesne | Güneş Sisteminin gezegenleri ve derin gökyüzü nesneleri |
