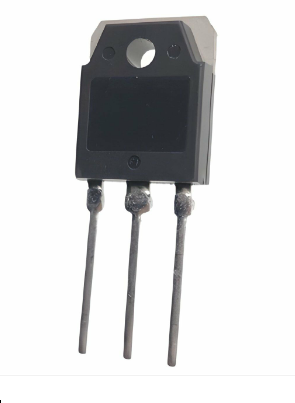

FDA69N25 TO-3P 69A 250V 480W 0.041Ω N-CHANNEL MOSFET
FDA69N25 MOSFET
Type Designator: FDA69N25
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 480 W
Maximum Drain-Source Voltage |Vds|: 250 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 69 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 77 nC
Maximum Drain-Source On-State Resistance (Rds): 0.041 Ohm
Package: TO3PN
