IXTQ480P2
%5
431,56 TL (Kdv Dahil)
454,27 TL
%3,00
Havale İndirimli Fiyatı : 418,61 TL
81,97 TL den başlayan taksitlerle!!
Stok Kodu
:
674549

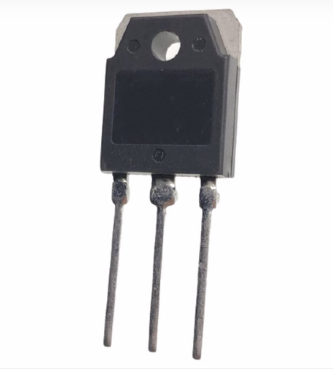

IXTQ480P2 TO-3P 52A 500V 960W N-CHANNEL POWER MOSFET TRANSISTOR
IXTQ480P2
Type Designator: IXTQ480P2
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 960 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4.5 V
Maximum Drain Current |Id|: 52 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 108 nC
Maximum Drain-Source On-State Resistance (Rds): 0.12 Ohm
Package: TO3P
