SPA08N80C3
142,56 TL (Kdv Dahil)
27,08 TL den başlayan taksitlerle!!
Stok Kodu
:
EMM1SHBHQS

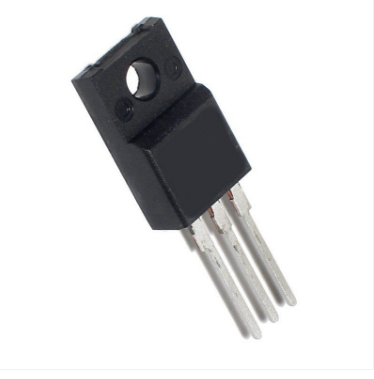

SPA08N80C3 TO-220F 8A 800V 40W 0.65Ω N-CHANNEL MOSFET
SPA08N80C3 MOSFET
Type Designator: SPA08N80C3
Marking Code: 08N80C3
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 40 W
Maximum Drain-Source Voltage |Vds|: 800 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3.9 V
Maximum Drain Current |Id|: 8 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 45 nC
Rise Time (tr): 15 nS
Drain-Source Capacitance (Cd): 46 pF
Maximum Drain-Source On-State Resistance (Rds): 0.65 Ohm
Package: TO220FP
