STP3NK90Z
151,87 TL (Kdv Dahil)
%3,00
Havale İndirimli Fiyatı : 147,31 TL
28,77 TL den başlayan taksitlerle!!
Stok Kodu
:
89BECPT8JJ

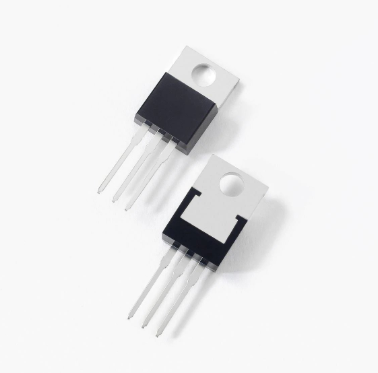

STP3NK90Z TO-220 3A 900V 90W 4.8OHM N-CHANNEL MOSFET
STP3NK90Z MOSFET
Type Designator: STP3NK90Z
Marking Code: P3NK90Z
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 90 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4.5 V
Maximum Drain Current |Id|: 3 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 22.7 nC
Rise Time (tr): 7 nS
Drain-Source Capacitance (Cd): 63 pF
Maximum Drain-Source On-State Resistance (Rds): 4.8 Ohm
Package: TO220
